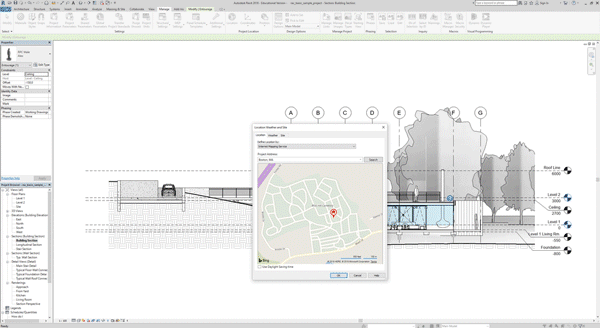

Opening Autodesk Revit’s Basic Sample Project. All Autodesk screen shots reprinted courtesy of Autodesk, Inc.

This building has never been built, nor does it ever plan to be. Yet this mythic edifice has been scrupulously documented, updated, circulated, and stored in in the contemporary architect/technician’s peripheral memory. It inhabits office start-up screens around the world, yet can never be occupied. Autodesk Revit’s Basic Sample Project is a Building Information Model in multiple senses—it is an information-rich simulation, a how-to manual, and a technical exemplar of software capabilities.1 What does Revit disclose in its start-up narrative, and what else might be found by wandering the parametric property uninvited? Through a close “user” reading of the generic yet hyper-codified out-of-the-box (OOTB) house, we can speculate on its aesthetic assumptions, its performance and performativity, and its genealogy and ontological status, ultimately asking: what does it mean to think through a simulation in our technologically hegemonic now?2 In order to think beyond BIM’s virtual space, one must still reckon with/in its fictions. In OOTB fashion, I begin by opening up the .rvt file.

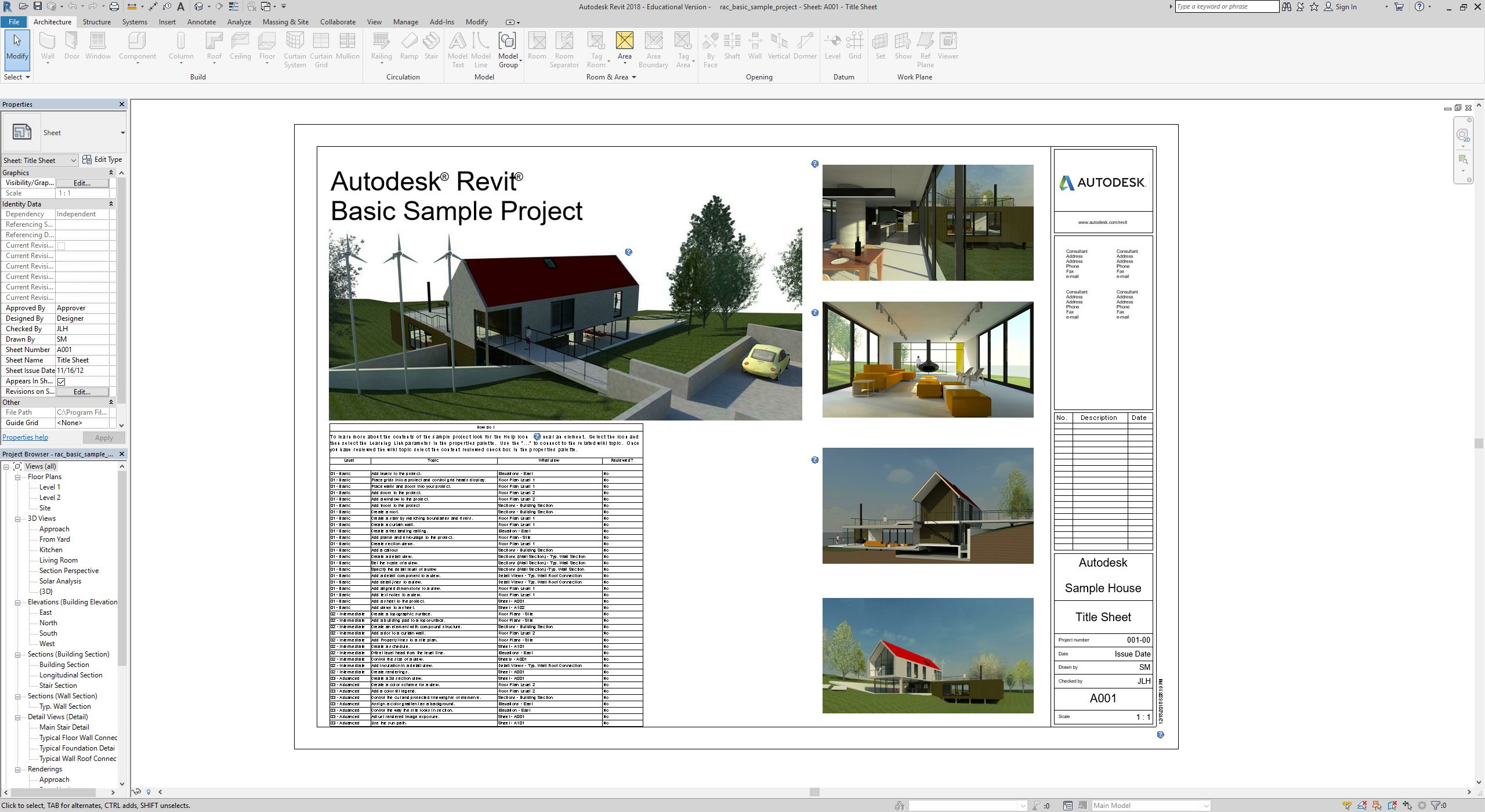

The snappy Revit portal summons forth not the sample house itself, but a skeuomorphic title sheet emblazoned with raster-images of the sample house. Frames within frames: we are in the model, but not yet in it.3 A “How Do I” directory takes the place of the drawing register. Already, Revit has put the contemporary architect in her place: at the paperless desktop, issuing virtual orders a thousand miles away from any real site. The sheet’s guise has subjectivating power: Wendy Chun remarks that through the “simulated visibility” of our interfaces, “software produces ‘users’.”4 After a few false starts, clicking blindly on unlinked images (not everything in BIM’s lifeworld is parametric),5 I enter the 3D model-space via the Project Browser sidebar. As we shall discover, Revit’s paratextual marginalia and nondiegetic displays prove to be far more useful in negotiating the model than the actual viewports.6 Taking the de facto position of a drone, I aerially survey the landscape: a square slab of digital earth floating like Laputa in Gulliver's Travels.7 The most practical way to “approach”8 the floating site—one whose single point-of-entry is an abrupt driveway-to-nowhere—is from the air. On the geopolitics of satellite viewing technologies, Ryan Bishop likens Laputa to the aerial military gaze, highlighting recent US military efforts to make the earth’s surface visually penetrable from above.9

The ability to see depth is certainly apropos to the Revit world-view, which alleges to make all components informationally, and literally, transparent: one renders solid objects see-though simply by clicking on them. Clicking Revit’s ground-plane reveals it as a Hollow Earth. Orbiting beneath the shell of an island, I find the house’s footings dangling into void. Bishop remarks that the autoscopic instrumentality of eye-in-the-sky surveillance constructs a solipsistic “perceiving and hovering self,”10 not unlike our sovereign, astral perceiving selves gliding through Revit model-space. This user-friendly scopic regime is furnished by an interactive ViewCube presiding over the viewport, a nifty heads-up display diagramming one’s live orientation without having to look away from the model-view.11 As unnecessary as this proxy Cube is for users with a middle mouse button, there is nonetheless something causally pleasurable about revolving an icon with real-time consequence.12 With the nondiegetic (World)ViewCube, one can be simultaneously immanent and transcendent—the 3D modeler, indeed, plays God.

As it turns out, it is incredibly difficult for a first-time visitor, no matter how Godlike her default disposition may be, to enter the house through the front door. Unlike SketchUp, where one penetrates walls by zooming into them, the glazed entry of Revit’s house remains impervious. It seems the house is not made to entertain one-off guests, but welcomes technical visitors and novices intent on learning. It is a machine for self-disciplining, where budding users go to familiarize themselves with the rhythms and flows of Revit technicity. This closed open-house could be emblematic of unpaid upskilling labors in an entrepreneurial world, where practicing architects, BIM managers, draftspersons, interns, students, and unemployed professionals must keep proactive pace with the relentless advance of software skills—typically on their own clock—to remain potentially employable.

But I have not come to seek instruction, and have most certainly not come to seek architectural insight either. Formally speaking, this house is a rather crude amalgam of vaguely architectural tropes. Squinting, we see Herzog & de Meuron's VitraHaus perched atop Johnson's Glass House, appended with some box-with-a-view of a thousand Pinterest hillside homes. Sustainability souvenirs—3 wind-turbines and 12 photovoltaics—stud this hill. After panning, zooming, and orbiting the perimeter several times like a stalker—capitulating momentarily to an unsuccessful Google-search on how to open doors using a Revit Walkthrough—I decide it is best to break-and-enter.13

More accurately, I Hide-a-Wall-and-Enter, only to step into the eerie mise-en-scène of a vacated dinner-party. The set dining-table bears no food—only a bottle of wine and eerily filled glasses of water. The general plan of the kitchen, too, exhibits an unconventional level of detail: plates, table-leg positions, an Aalto vase… Fitted with parametric Miele appliances,14 the well-appointed Revit kitchen becomes an advertising-space for BIM-capable suppliers to showcase their downloadable wares. The bedrooms upstairs, by contrast, are empty—this is no place for rest. So, who is the host?15

Clumsily wielding Revit’s 3D Camera function, I move upstairs only to double-take at the shadowy human figure standing against the full-height balcony window. Perturbed, my mouse instinctively hovers over to identify her: “Entourage: RPC Female: YinYin.”16 According to Revit community trivia, Revit 4.0’s web-launch of 2001 featured Parametro, a fictional city in which YinYin, Alex, and other default Family members lived. The public relations narrative was elaborated so much as to include “a special section introducing the residents of Parametro and a little bio about each of them.”17 What of this benign sales stunt? Foucault once identified two forces that could disrupt emplacement: “contemporary engineering,” and “demography.”18 That is, media and human population management both disrupt the localization of objects/subjects through modes of information storage, tagging, distribution, classification, and preferential retention of (human or nonhuman) elements in an ensemble. The BIM human library—an epistemic technology Foucault may not have foreseen—plays easily into both categories without disruption, inviting a revised postulation that Revit “people” in their infinitely migratory, technically reproducible status are not simply scattered bits to be managed, but active assemblages of management. Revit humans are emplacements. Made for global network sharing, YinYin and Friends are engineered bundles of demographic preferences that are on the one hand ethnically “diversifying,” and on the other, increasingly gendered, racially typed, and “realistic.” Racialized render realism turned deployable action-figure.

What is particularly troubling about Revit’s entourage biopolitics is that this default cast of characters is enshrined as the “Imperial family library”—with youthful RPC: Male Alex at its head.19 In The Interface Effect, Alexander Galloway posits that “race is ‘unplayable’ in any conventional sense… to play with race and to play with race are two entirely different things.”20 The fact that Families are editable means that YinYin’s parametric DNA can be “played with.” When does YinYin stop becoming YinYin? Today, real people can also become (com)modifiable RPC Families.21 Given the AEC industry’s recent interest in using Virtual Reality (VR) technologies for BIM-model walkthroughs with clients and consultants, would YinYin’s subjectivity soon be first-person “playable” in Galloway’s second sense? With the sunlight turned off in the model’s default Shaded mode, this living-room encounter could be a scene out of an animated thriller, or a live game of Cluedo.22 The yet-unrendered shadowy “others” in this working model (two YinYins and one Alex) look just like gameboard tokens; even the trees outside are cut-and-slot pieces on model stands. “It was Yin Yin with the Aalto Vase in the Dining Room!”

Of course, this home-that-is-not-a-house is, ultimately, not a gaming environment but an architectural model. Graphic conventions betray the model’s toy realism; dimensions, grid-lines, concrete speckling, and earth hatches relieve us from the uncanny. However, in a bid to deliver both legibility and realism to the screen, BIM models occasionally produce the impossible. In the North Elevation View, the silhouette cast by a solar panel spills over the section cut-line and onto the earth-hatch: a diagrammatic space that no sunlight can reach. This clash between sciography and section remains undetected, as it does not interfere with the fundamental operations of the building model. Revit’s uncalculated shadow suggests a prioritization of object fidelity and performance over visual apprehension, or real physics. And metaphysics: Revit’s “live” sectional views, detailed and true-to-object as they are, depart from the other famous architectural sections of CAD history, such as the enlivened anatomical sections of Atelier Bow-Wow.23 It seems that the more interactive and automatically mutable a model’s section-cut becomes, the more graphically dampened its drawing spirit…

I am starting to experience simulation fatigue. Where am I, really? Happening upon a globe icon in the Management tab, I summon the Location Weather and Site dialog. An innocuous “home” location marker (another universal red-pitched vernacular) marks the spot on an embedded map. Location: Boston, MA. Zooming in, we can read the map label: Blue Hill Cemetary. Wait, what? Corroborating the coordinates with Google Earth (another military-derived aerial vision), sure enough, neat rows of gravestones cover the hillside where our Revit residence is geolocated.24 Flicking back to the open Revit file, I stare at the suspended necropolis.

Twenty-four years ago, MIT Media Lab founder Nicholas Negroponte declared: “Computing is not about computers anymore. It is about living.”25 He is better known for another techno-optimistic adage: “demo or die.” Capturing the pre-millennium start-up ethos of proving-by-doing, “demo or die” was Media Lab’s response to academia’s “publish or perish,” and remains the refrain of many techpreneurs today.26 If technological innovation is a matter of life or death, the Revit house’s uncanny geolocation on a cemetery and crematory in Braintree, Massachusetts, presents a potentially grave site upon which to ruminate where we might be going with the politics of architectural modeling, and the heterotopias they co-produce. In “Demoing unto Death,” Orit Halpern and Gökçe Günel see this aggressively optimistic impulse of “preemptive hope” unfold at the scale of mega-urban development. New “smart” cities such as Songdo, South Korea, and Masdar, Abu Dhabi, they posit, are test-beds of environmental, security, and financial opportunity which unremittingly defer the imminent threat of future disaster.27 Reading Songdo as an unending, processual “technical product,” Halpern and Günel level urbanism with software—specifically, demo software—a parallelism that today seems more literal than literary device.28 Today, BIM technologies are poised as an innovation spearhead for developments in “7D” building life-cycle management, sensor-embedded infrastructures, digital twins, lean construction (LC), virtual design and construction (VDC), automated construction manufacturing, cyber-physical construction, GIS-enabled City Information Modeling (CIM), and “the Fourth Industrial Revolution” (4IR or “Industry 4.0”).29

If, as Halpern and Günel argue, that “the demo is a form of temporal management,” then BIM is a biopolitical technology, with the ability to regulate digital and real populations, and its demo, a beginner’s initiation into its virtuous circle of employable skills and subscribing users.30 But a key difference between smart city prototypes and the Revit house is that the latter is not for sale; the simulation does not possess real estate value nor capitalize on real disaster conditions. It is, more simply, a default demonstration space for technical proficiency at a moment in which BIM capability is a key measure of architectural employability. Today, the demo is used to showcase BIM expertise and third-party software features: a demo for demos. Render software vendor Chaos Group has used it to explain workflows and announce V-Ray launches.31 Lumion has used it in hero renders and GIFs to substantiate their plug-in’s LiveSync render feature.32 Across the internet, the red-roofed house is grafted into myriad tropical, coastal, and wintry environs. By demonstrating technical aptitude, the house is a proof-of-concept vehicle performed by entrepreneurial subjects to increase the potential purchase value of one’s immaterial labor. It is an entangled actor in what Michel Feher in Rated Agency calls the investor-investee relation.33

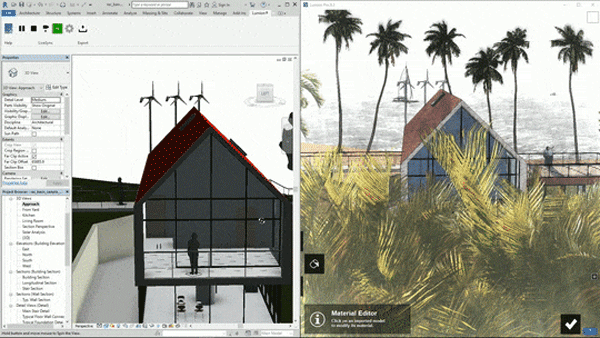

Lumion's LiveSync render feature. Image: Lumion.

In a 2014 TED Talk, MIT Media Lab’s current director, Joichi Ito, declared the Negropontian mandate for the research group be superseded. His override: “deploy or die.”34 This would mean that no longer is the demo about showing—a performative mode where planning, persuasion, and negotiation are still operational forces—but a direct, in-the-now doing.35 The fully integrated BIM model, too, makes a case for consequential, real-time creditworthiness. Recently, start-up construction companies like Katerra have applied BIM to vertically integrated, “end-to-end building services” (dare I say, cradle-to-grave).36 The deployable demonstration has gone from TED-talk dictum to actionable business directive. It might come as no surprise to see further collapses between Revit sample software and urban software, between user and citizen, such as object-oriented architectural licensure, mortgage scoring via digital properties, performance-based wagers on architectural labor,37 Family libraries of photo-registered citizens… Beset by the increasing smartness of our heterotopias, one can only preemptively hope (and I reserve some genuine optimism) that there is more than one possible version for this increasingly information-rich, beta-tested future.

With that, I close the file without saving.

×
